Typical Replacing Infineon IGBT
High inversion efficiency
High output power density
IC in parallel blanced current
High strength insulation substrate

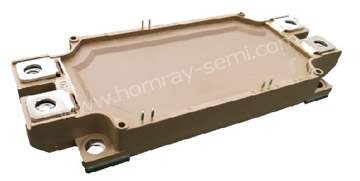

Automotive IGBT Module
IC in parallel blanced current
Sintering Cu foil for wire bonding
Replacing Infineon Econo/HP Series
Anti-vibration structure for high speed
IGBT Small Power Module-N Series
Collector-Emitter Voltage 1200V
Continuous Collector Current 10A
Repetitive Peak Collector Current 20A
Total Power Dissipation 105W
IGBT Medium Power Module-E65 Series
Collector-Emitter Voltage 1200V
Continuous Collector Current 35A
Repetitive Peak Collector Current 70A
Total Power Dissipation 208W
IGBT Medium Power Module-E63 Series
Collector-Emitter Voltage 1200V
Continuous Collector Current 25A
Repetitive Peak Collector Current 50A
Total Power Dissipation 158W
IGBT High Power Module-F45 Series
Collector-Emitter Voltage 1200V
Continuous Collector Current 200A
Peak Collector Current 400A
Total Power Dissipation 1360W
IGBT High Power Module-F23 Series
Collector-Emitter Voltage 1200V
Continuous Collector Current 40A
Peak Collector Current 80A
Total Power Dissipation 312W
