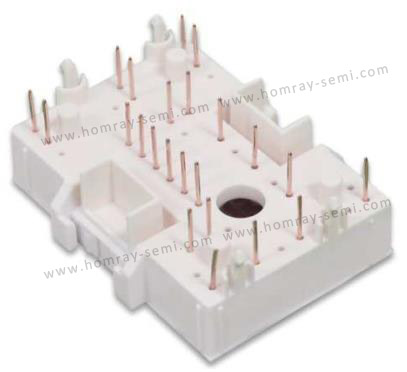

IGBT Small Power Module-N Series

As the leading manufacturer and supplier of IGBT power module, Homray Semiconductor Technology provide small power IGBTmodule.The votage of IGBT have 600V,650V,1200V. Current range from 10A~200A. IGBT is the short form of Insulated Gate Bipolar Transistor. It is a three-terminal semiconductor switching device that can be used for fast switching with high efficiency in many types of electronic devices.

Features
Low switching losses / Low vce(sat)with positive temperature coefficient / Including fast & soft recovery anti-parallel FWD / Low inductance case / High short circuit capability(10us) / Isolated heatsink using DBC technology

Applications
Motor Drivers
AC and DC servo drive amplifier
UPS (Uninterruptible Power Supplies)

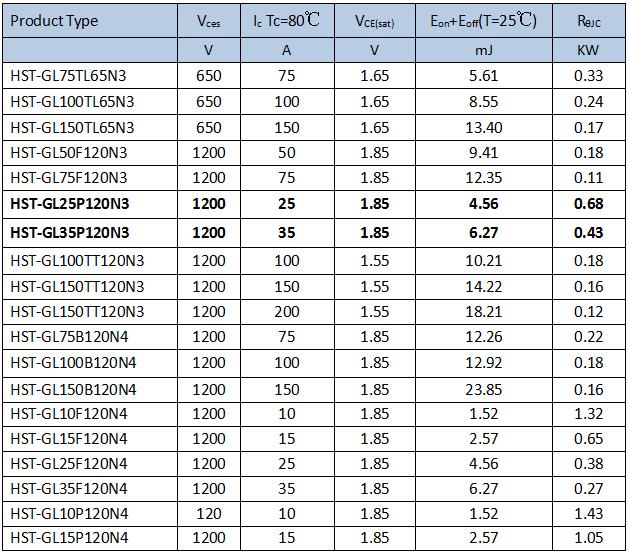

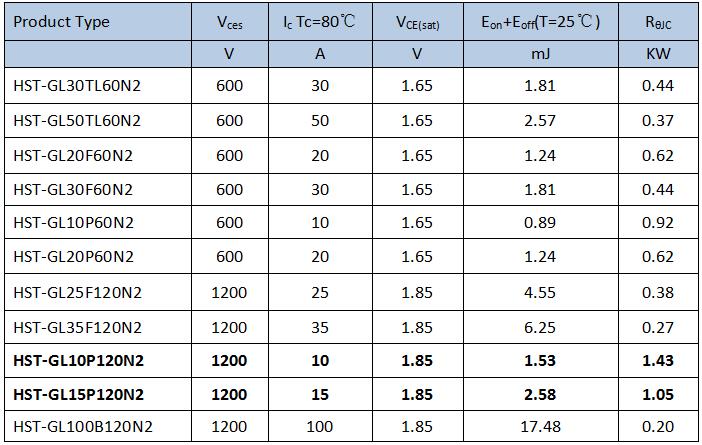

Technial parameters reference as typical model HST-GL10P120N2 below：

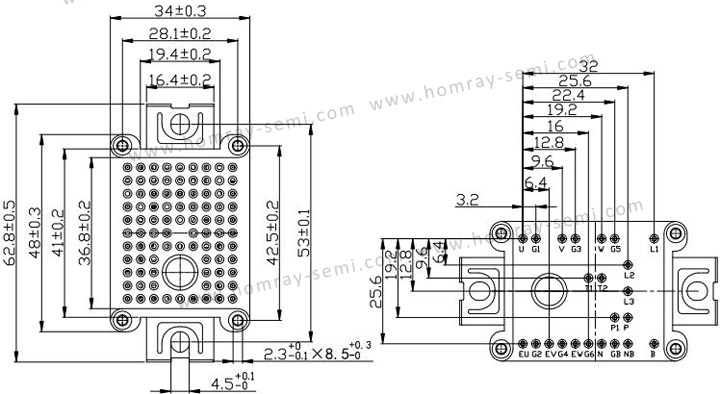

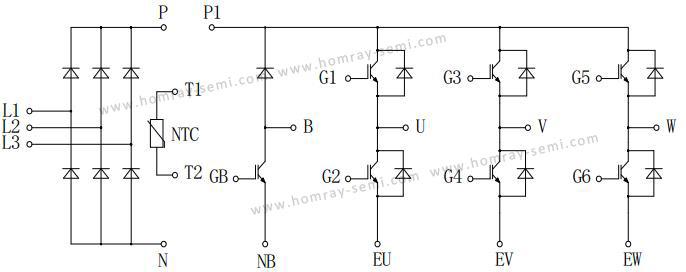

Circuit Diagram & Package Dimensions

IGBT Inverter

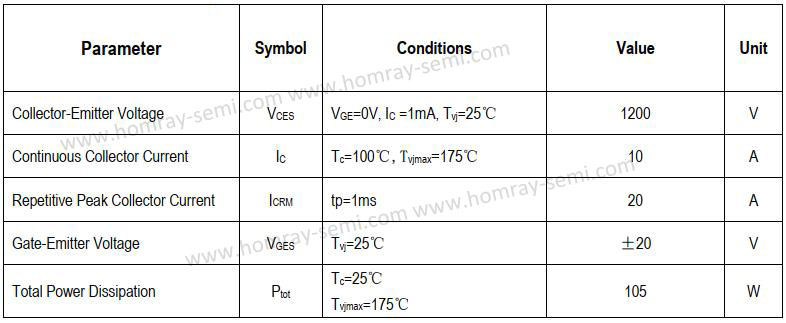

Absolute Maximum Ratings

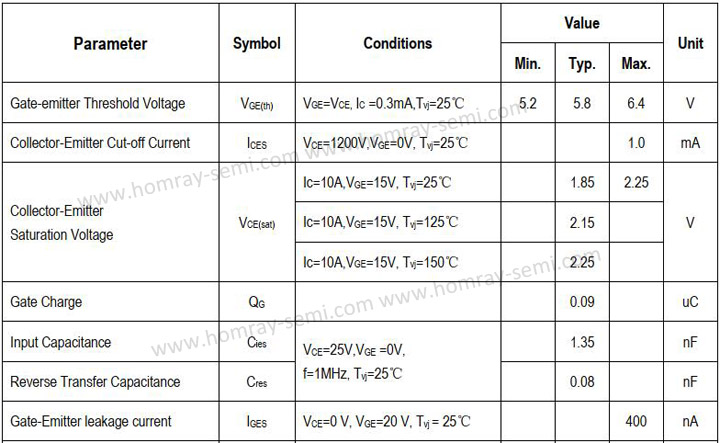

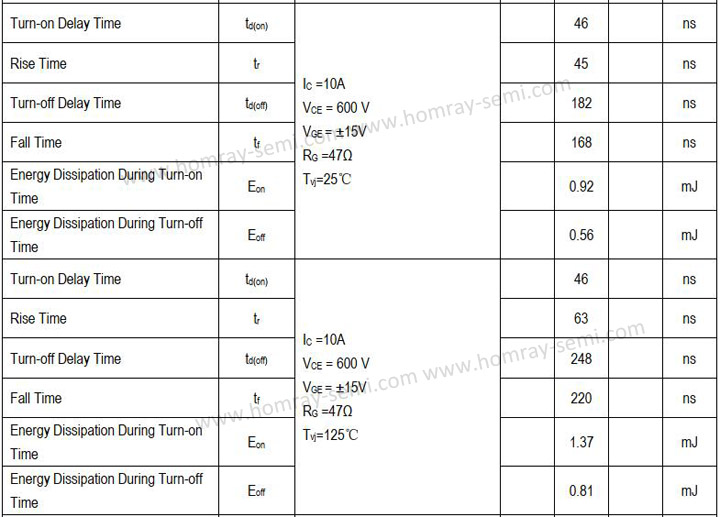

Characteristic values



Diode Inverter

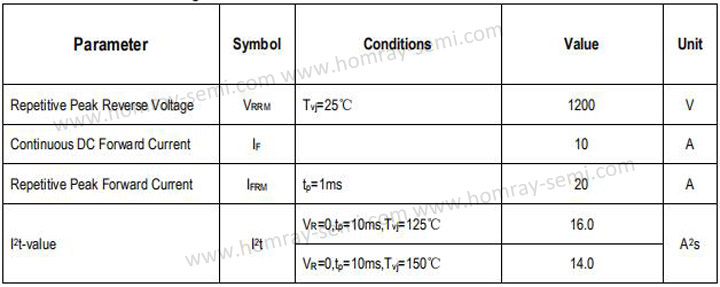

Absolute Maximum Ratings

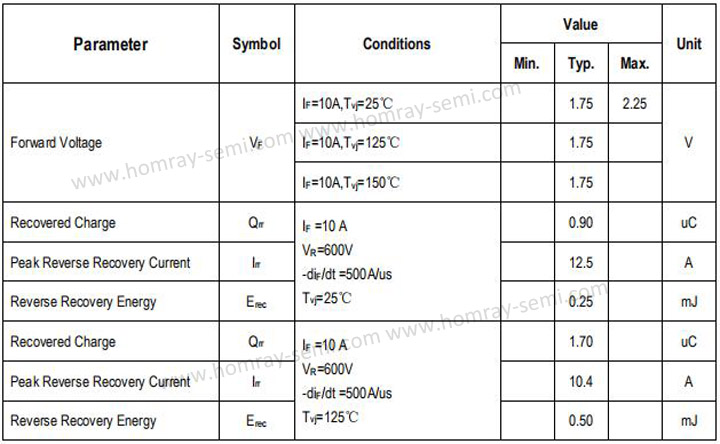

Characteristic values
