IGBT High Power Module-F45 Series

Homray Semiconductor Technology high power IGBT modules are designed for 600V/650V, 1200V and 1700V with rated current range 10A - 800A. HST-GL200B120F45 can replacing Infineon IGBT Module FF200R120KE3/KT3/KE4. HST-GL300B120F45 can replacing Infineon IGBT FF300R120KE3/KT3/KE4. IGBT Power Module are used in various applications such as AC and DC motor drives, Unregulated Power Supply (UPS), Switch Mode Power Supplies (SMPS), traction motor control and induction heating, inverters, used to combine an isolated-gate FET for the control input and a bipolar power transistor as a switch in a single device, etc.

Applications
Inverter for motor drive
AC and DC servo drive amplifier
UPS (Uninterruptible Power Supplies)
Soft switching welding machine

Features
Low Vce(sat) with SPT+ technology
Vce(sat) with positive temperature coefficient
Including fast & soft recovery anti-parallel FWD
High short circuit capability(10us)
Low inductance module structureA

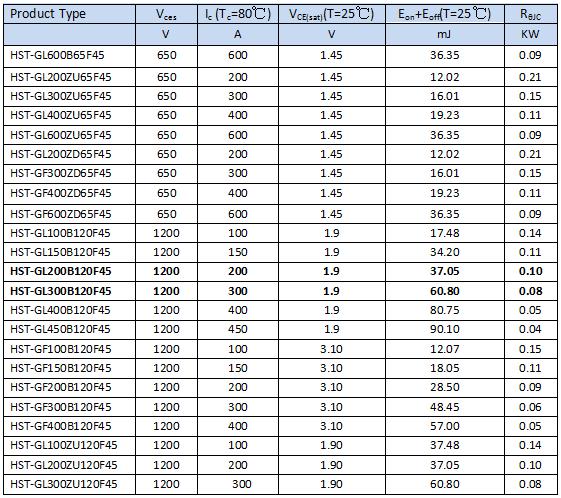

Technial parameters reference as typical model HST-GL200B120F45 below:

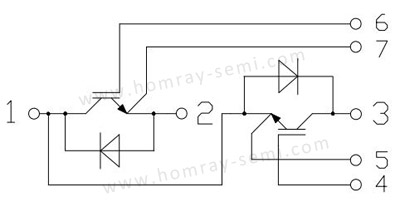

Circuit Diagram & Package Dimensions


IGBT Inverter

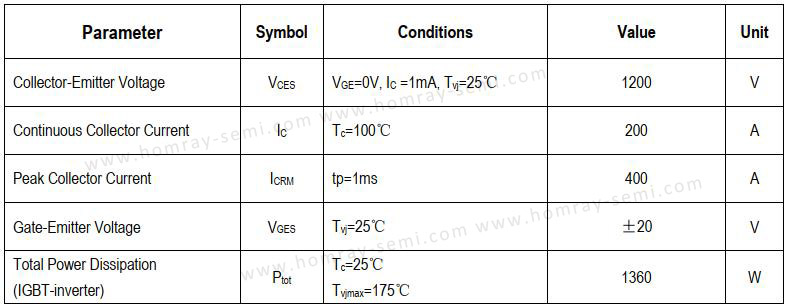

Absolute Maximum Ratings

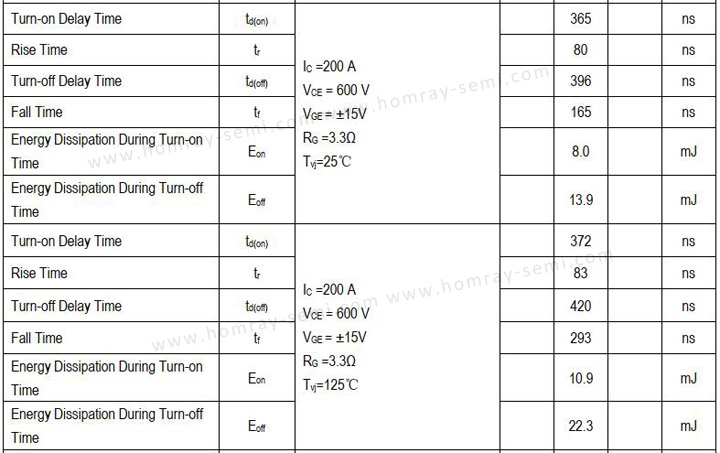

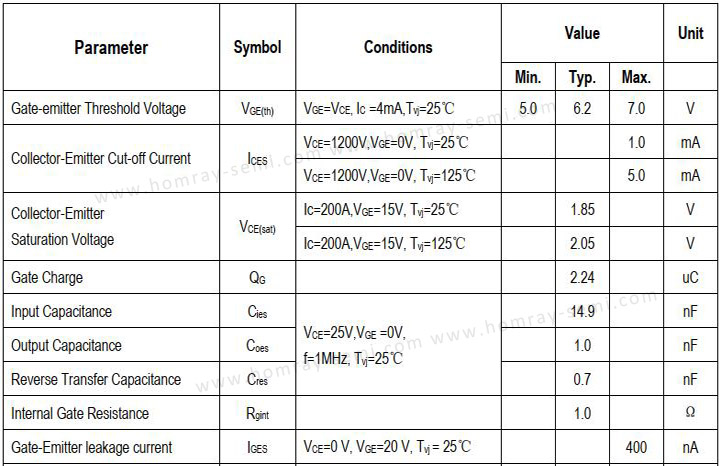

Characteristic values




Diode Inverter

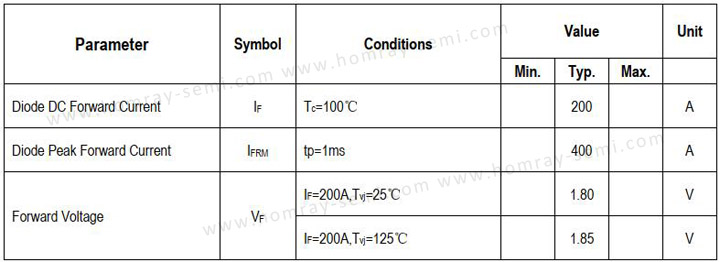

Absolute Maximum Ratings

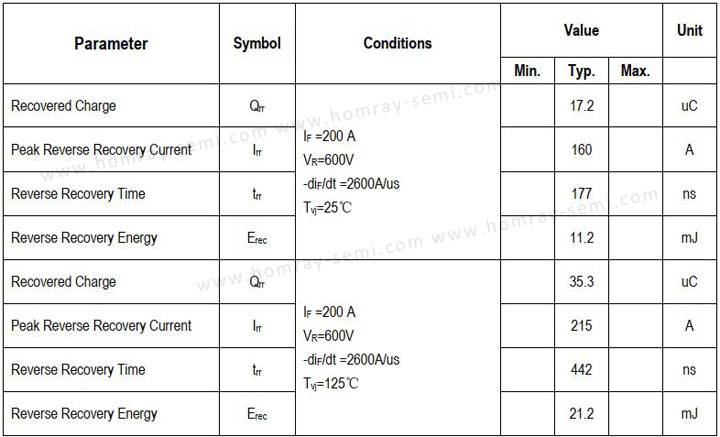

Characteristic values
