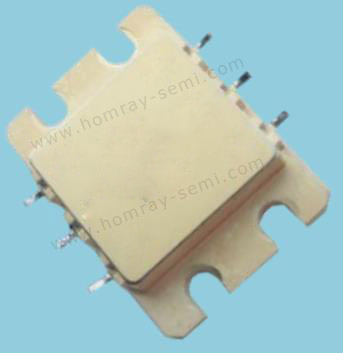

HST122FA GaAs Power Amplifier IC

Freq:0.9~1.3GHz
Gain:20dB

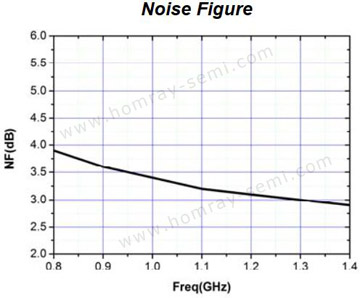

Noise Figure:3.5dB

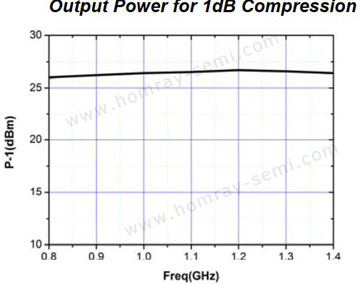

Output Power for 1dB Compression: 26dBm
Supply Voltage: +5V
Supply Current: 265mA

Product Description

As the leading manufacturer and supplier of GaAs/GaN Power IC, Homray Semiconductor Technology can provide GaAs Power Amplifier IC, GaN Power IC etc. A power amplifier is an amplifier designed primarily to increase the power available to a load. In practice, amplifier power gain depends on the source and load impedances, as well as the inherent voltage and current gain. A radio frequency (RF) amplifier design typically optimizes impedances for power transfer, while audio and instrumentation amplifier designs normally optimize input and output impedance for least loading and highest signal integrity.

Applications
Base station
Defense communications
Electronic warfare (EW) and radar
Optical
Point-to-point radio
VSAT

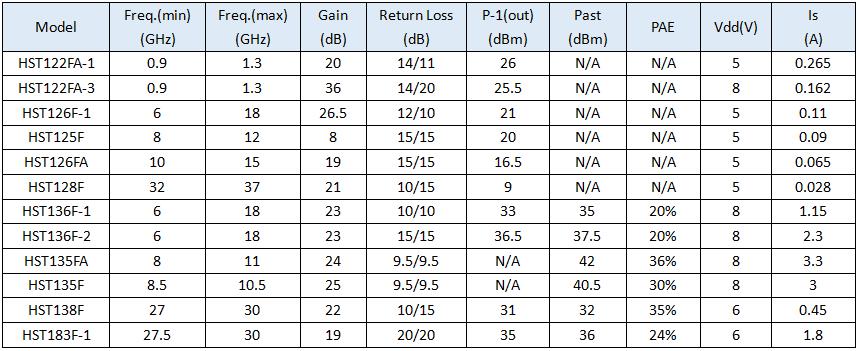

Technial parameters reference as typical model HST122FA-1below:
